Plug-In Unit Power Supply 132

Tektronix; Portland, OR

  • Year
  • 1963
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 206259

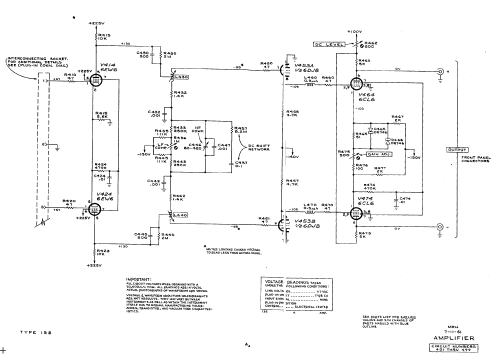

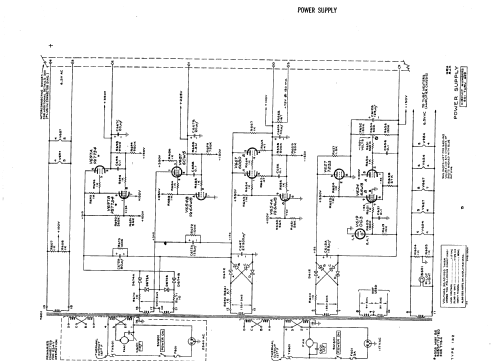

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 12
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 115; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Plug-In Unit Power Supply 132 - Tektronix; Portland, OR
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 7 x 9.5 x 19 inch / 178 x 241 x 483 mm
  • Notes
  • The Tektronix Model 132 is a combination power supply and one-module carrier, providing power to various Tektronix plug-in units.
  • Net weight (2.2 lb = 1 kg)
  • 17 lb (17 lb 0 oz) / 7.718 kg
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Hank Kaczmarski. See "Data change" for further contributors.
