Portable Oscilloscope 323

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007325) Equipment

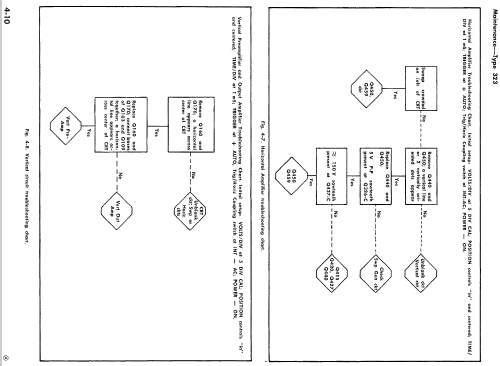

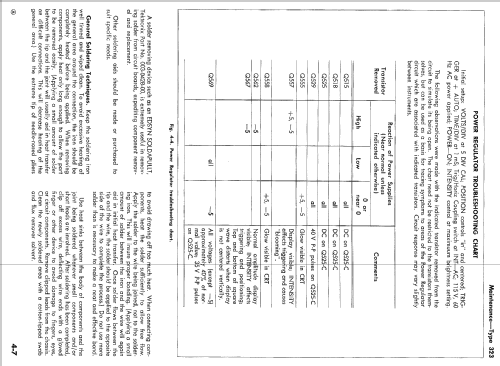

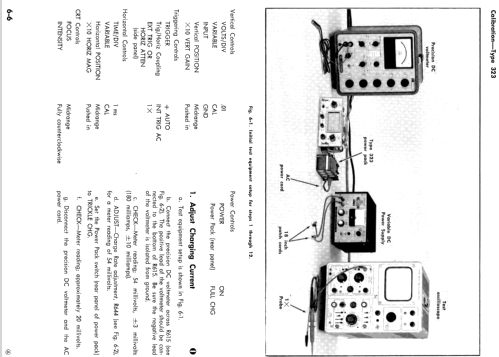

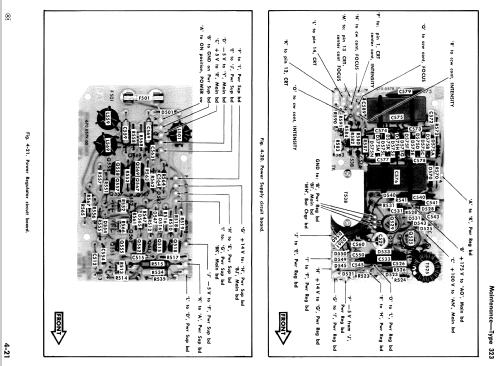

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007326) Equipment

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007327) Equipment

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007328) Equipment

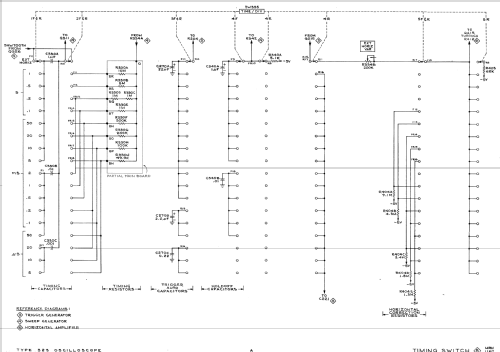

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007329) Equipment

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007330) Equipment

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007331) Equipment

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007332) Equipment

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007333) Equipment

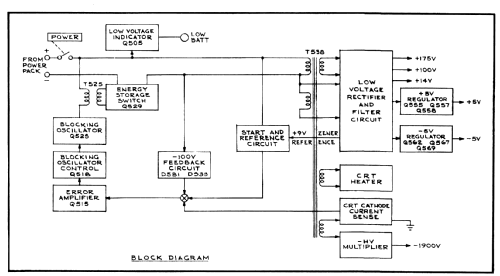

Portable Oscilloscope 323; Sony-Tektronix, (ID = 1007334) Equipment
Portable Oscilloscope 323; Sony-Tektronix, (ID = 1737672) Equipment Portable Oscilloscope 323; Sony-Tektronix, (ID = 680726) Equipment
Portable Oscilloscope 323; Sony-Tektronix, (ID = 680722) Equipment Portable Oscilloscope 323; Sony-Tektronix, (ID = 680723) Equipment
Portable Oscilloscope 323; Sony-Tektronix, (ID = 548646) Equipment Portable Oscilloscope 323; Sony-Tektronix, (ID = 680724) Equipment
Portable Oscilloscope 323; Sony-Tektronix, (ID = 680725) Equipment Portable Oscilloscope 323; Sony-Tektronix, (ID = 680729) Equipment
Portable Oscilloscope 323; Sony-Tektronix, (ID = 763114) Equipment Portable Oscilloscope 323; Sony-Tektronix, (ID = 763115) Equipment
Use red slider bar for more.
Portable Oscilloscope 323; Sony-Tektronix, (ID = 1737672) Equipment

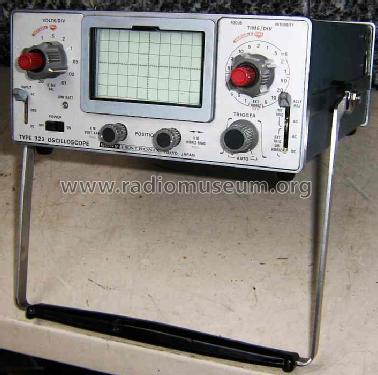

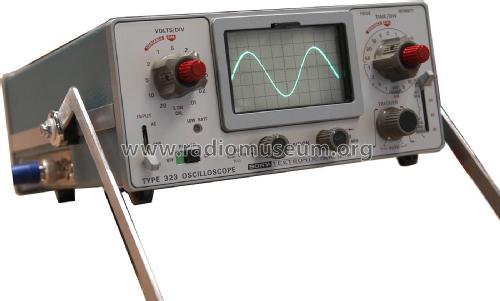

Sony-Tektronix,: Portable Oscilloscope 323 [Equipment] ID = 1737672 1400x845
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Oscilloscope 323, Sony-Tektronix, Tokyo

Country:  Japan
Manufacturer / Brand:  Sony-Tektronix, Tokyo
Year: 1967 Category: Service- or Lab Equipment
Valves / Tubes 1: 154-0519-00
Semiconductors (the count is only for transistors) 64:
Main principle none
Wave bands - without
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 90-136; 180-272 / 6–16 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Portable Oscilloscope 323 - Sony-Tektronix, Tokyo
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 216 x 108 x 323 mm / 8.5 x 4.3 x 12.7 inch
Notes TEK 323, Portable Battery Scope, Bandwidth: DC to 4 MHz at 10 mV/Div; Range: 5 MHz, 10 mV to 20 V, Trigger up to 8 MHz; Sensitivity 2 mV to 20 V/Division; Input Impedance 1 MΩ/47 pF; Horizontal: 5 µs to 1 s, Magnifier ×10, best resolution at 0,5 µs; Vertical Gain Magnifier ×10; internal Calibrator 0.5 V Square 1 kHz.
Internal loading unit for stationary use in the Laboratory. Screen green, 70×45 mm with raster. AC, DC or battery powered, up to 8 hours operation from battery.
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Price in first year of sale 925.00 $
Source of data - - Manufacturers Literature

Model page created by Pius Steiner. See "Data change" for further contributors.



All listed radios etc. from Sony-Tektronix, Tokyo
Here you find 6 models, 6 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
