Programmable Oscilloscope Calibration Generators CG5001

Programmable Oscilloscope Calibration Generators CG5001; Tektronix; Portland, (ID = 1007759) Equipment Programmable Oscilloscope Calibration Generators CG5001; Tektronix; Portland, (ID = 1007760) Equipment
Use red slider bar for more.

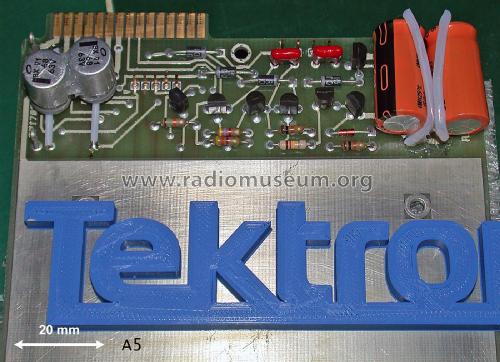

Programmable Oscilloscope Calibration Generators CG5001; Tektronix; Portland, (ID = 1007759) Equipment
Tektronix; Portland,: Programmable Oscilloscope Calibration Generators CG5001 [Equipment] ID = 1007759 910x518
Select picture or schematic to display from thumbnails on the right and click for download.
For model Programmable Oscilloscope Calibration Generators CG5001, Tektronix; Portland, OR

Country:  United States of America (USA)
Manufacturer / Brand:  Tektronix; Portland, OR
Year: 1983 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Programmable Oscilloscope Calibration Generators CG5001 - Tektronix; Portland, OR
Material Metal case
Shape Rack
Dimensions (WHD) 203 x 124 x 305 mm / 8 x 4.9 x 12 inch
Notes The Tektronix CG 5001/CG 551AP Programmable Oscilloscope Calibration Generators can be used as a part of a computerized system for the calibration and verification of major oscilloscope parameters, including:
Vertical Gain
Horizontal Timing and Gain
Vertical Bandwidth/Pulse Response Characteristics
Probe Accuracy and Compensation
Current-Probe Accuracy
Calibrator-Output Accuracy
The CG 5001/CG 551AP feature a wide range of functions, all programmable by controller via the GPIB. A "Learn" mode allows any manually set function or range to be acquired by a controller. Subsequent use of the resulting program requires a minimum of operator skill and makes data logging an automatic operation. A CG 5001/CG551AP Controller test and calibration system can provide step by step to the operator, significantly reducing the skill level required for scope maintenance. The CG 5001/CG 551AP can be used in conjunction with the optional Comparator Head (015-0310-01) to calibrate built-in oscilloscope calibrators. Both the oscilloscope calibrator and the CG 5001 signals are applied to the Comparator Head and simultaneously displayed on the scope's CRT. The CG 5001 signals are then varied to obtain congruent displays. Errors are automatic ally displayed on the readout. The Remote Variable option, the Units/Div, Variable-Fixed button, the Continue push-button, and the VAR allow remote operation of the system. The CG 5001/CG 551AP is designed to greatly reduce your maintenance costs. Built in self test routines and hardware check the Operation of all major circuits each time power is turned on. Modular construction means that all circuit boards unplug (except the Main Interconnect) for easy exchange if service is required. A signature analysis mode is included to facilitate troubleshooting of the digital portion of the instrument

Option 01 Adds High Accuracy Time Base (TCXO) $650
Option 02 Deletes Pulse Head - $1100

CG5001 requires either a TM5003 or TM5006.
Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)
Price in first year of sale 14'995.00 $
Source of data - - Manufacturers Literature

Model page created by Pius Steiner. See "Data change" for further contributors.
