• Country
• United States of America (USA)

• Manufacturer / Brand
• Tektronix; Portland, OR

• Year
• 1983 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 228721

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Service-Oszilloskop GH 150MHz 2335 - Tektronix; Portland, OR

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 274 x 135 x 432 mm / 10.8 x 5.3 x 17 inch

• Notes

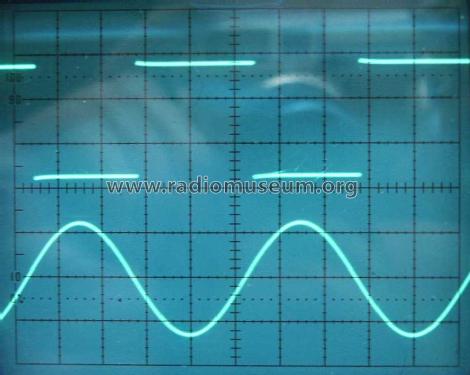

• 150 MHz Zweikanal Oszilloskop mit 11cm Bildschirm

  Bandbreite DC-150 MHz, Anstiegszeit 3,5nS, Ablenkung 5 (2) mV bis 5V/Teil

  0,05 - 0,5 sec/Teil, Dehnung 10fach 5nS/Teil, X-Y Betrieb, Z-Achse.

  Weitere Betriebsmodi siehe Beschreibung



• Net weight (2.2 lb = 1 kg)
• 7.7 kg / 16 lb 15.4 oz (16.96 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Dietrich Grötzer. See "Data change" for further contributors.
