• Country
• United States of America (USA)

• Manufacturer / Brand
• Tektronix; Portland, OR

• Year
• 1978

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 303333

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

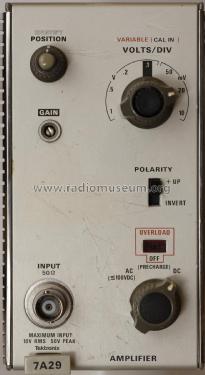

• Model: Vertical amplifier plug-in 7A29 - Tektronix; Portland, OR

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 63 x 123 x 397 mm / 2.5 x 4.8 x 15.6 inch

• Notes

• The Tektronix 7A29 is a vertical amplifier with 50 Ω input impedance and 1 GHz bandwidth, intended primarily for the 7104 oscilloscope.

  It uses Tektronix-made hybrid amplifier ICs and a "feed-beside" scheme implemented with standard low-frequency operational amplifiers to  compensate for low-frequency anomalies in the frequency response that are attributed to transistor heating.

  Although the 7A29 has a VARIABLE gain control, this control has the undesirable side-effect of also affecting bandwidth.

  Models with option 4 have a variable delay line added.

  Price for 7A29 with Opt.4: 8883.- CHF (1986/1987)

• Net weight (2.2 lb = 1 kg)
• 1.140 kg / 2 lb 8.2 oz (2.511 lb)

• Price in first year of sale
• 7,855.00 CHF

• Source of data
• -- Original prospect or advert

• Mentioned in
• - - Manufacturers Literature

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Peter Holzleitner. See "Data change" for further contributors.
