Waveform Monitor RM529-188D

• Country
• United States of America (USA)

• Manufacturer / Brand
• Tektronix; Portland, OR

• Year
• 1969

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 152879

• Picture

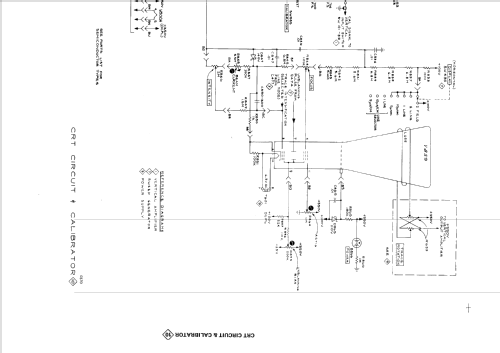

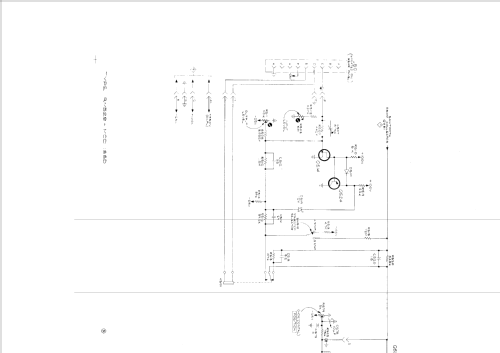

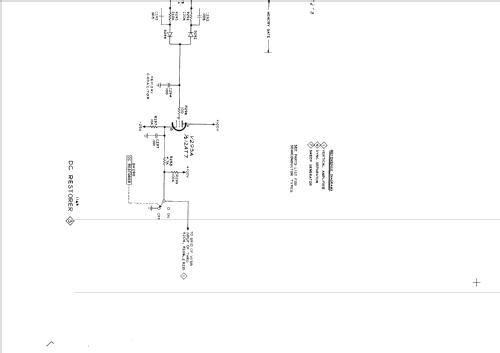

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AT7 7788 or E810F 6GV8 or ECL85

• Number of Transistors
• 19

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Waveform Monitor RM529-188D - Tektronix; Portland, OR

• Shape
• Rack

• Dimensions (WHD)
• 483 x 133 x 508 mm / 19 x 5.2 x 20 inch

• Notes

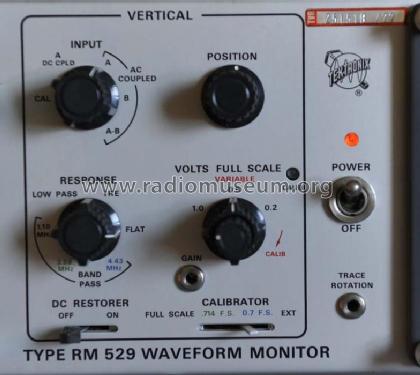

• Tektronix RM529/188D Waveform Monitor;

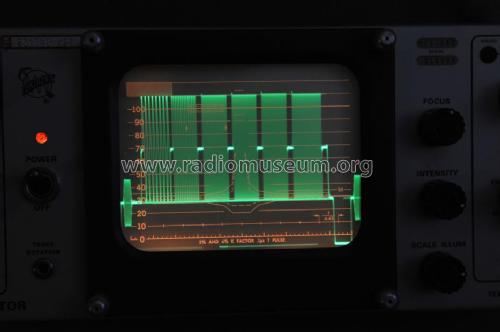

  525/60 625/50 405/50 819/50 line and field rate television transmitter waveform monitor with cathode ray oscilloscope, 98 W power consumption.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Thierry Oget. See "Data change" for further contributors.
