• Country
• Spain

• Manufacturer / Brand
• Telcom S.A.; Alcobendas (Madrid)

• Year
• 1978 ??

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 320003

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver; ZF/IF 21400/455 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3 W (undistorted)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

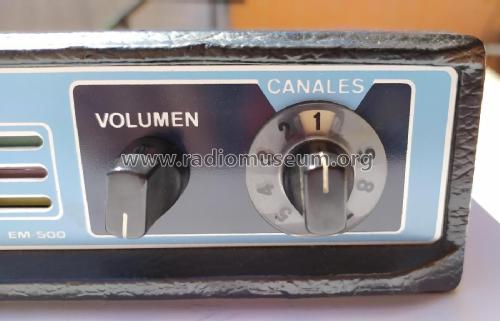

• Model: EM-500 [VHF] - Telcom S.A.; Alcobendas

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 185 x 57 x 180 mm / 7.3 x 2.2 x 7.1 inch

• Notes

• Telcom, S.A., Transceptor EM-500

  • Banda baja VHF: 66 a 88 MHz / Banda alta VHF: 146 a 174 MHz
  • Canales: 8
  • Potencia: 5 / 15 / 25 W

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Author
• Model page created by Gerardo Ramón. See "Data change" for further contributors.
