RKP-53-A
Tele King
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tele King
- Year
- 1954 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 369809

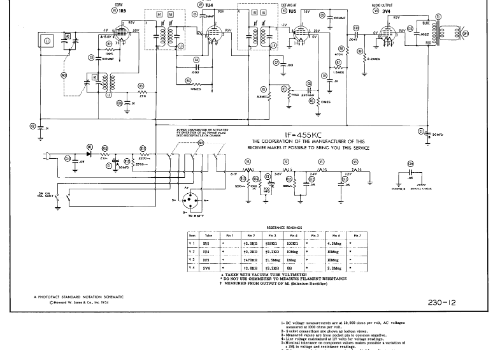

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 117=110-120 / 7.5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RKP-53-A - Tele King
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Teleking model RKP-53-A is a three power portable AM superheterodyne receiver.
- Literature/Schematics (2)

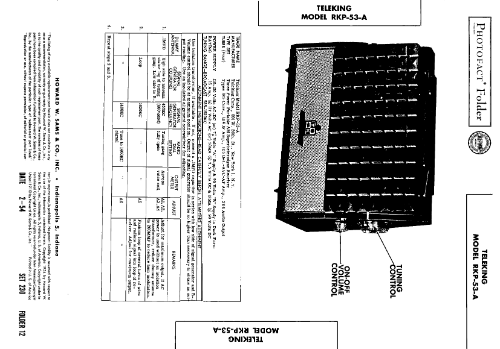

- Photofact Folder, Howard W. SAMS (Set 230, folder 12, dated 2-54)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
