For model 113 Ch= A late, Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY):
Front

Country:  United States of America (USA)
Manufacturer / Brand:  Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)
alternative name

Teletone
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner

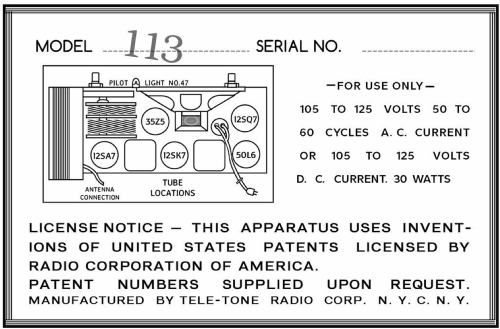

Valves / Tubes 6: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 113 Ch= A late - Tele-Tone Radio Corp., Tele-
Material Wooden case
Shape Tablemodel, with any shape - general.
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Dat 5-48, set 39, folder 489-26)


All listed radios etc. from Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)
Here you find 151 models, 74 with images and 94 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
