Jubilé 53

Jubilé 53 ; Telefunken France; (ID = 956057) Radio Jubilé 53 ; Telefunken France; (ID = 956058) Radio

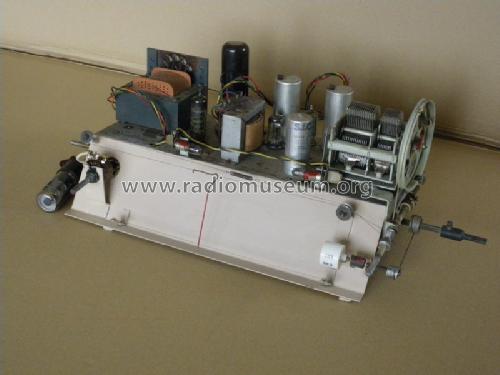

Jubilé 53 ; Telefunken France; (ID = 956059) Radio Jubilé 53 ; Telefunken France; (ID = 956060) Radio
Jubilé 53 ; Telefunken France; (ID = 956061) Radio
Use red slider bar for more.
Jubilé 53 ; Telefunken France; (ID = 956057) Radio
Telefunken France;: Jubilé 53 [Radio] ID = 956057 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jubilé 53, Telefunken France; Paris

Country:  France
Manufacturer / Brand:  Telefunken France; Paris
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BE6 6BA6 6AV6 EL11 6AF7 6X4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Jubilé 53 - Telefunken France; Paris
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 510 x 360 x 220 mm / 20.1 x 14.2 x 8.7 inch
Notes Gammes d'ondes: PO GO OC BE1 BE2, commutateur coté droit,
Bouton de réglage tonalité coté gauche.
Net weight (2.2 lb = 1 kg) 10.3 kg / 22 lb 11 oz (22.687 lb)

Model page created by Michel Vernet. See "Data change" for further contributors.



All listed radios etc. from Telefunken France; Paris
Here you find 39 models, 36 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken France;: Jubilé 53
Threads: 1 | Posts: 2
Hits: 2035     Replies: 1
telefranc: Jubilé 53 tube telefunken 647
Michel Vernet
20.Mar.11
  1

Je recherche toute information sur le tube Telefunken 647, penthode de sortie BF du récepteur Telefunken Jubilé 53. Merci, Micheltube telefunken 647 culot

tube telefunken 647

Wolfgang Bauer
21.Mar.11
  2


C'est probablement l'une EL11.
Voir l'image ==> ID = 874341

Cordialement WB.


Telefunken France;: Jubilé 53
End of forum contributions about this model
