121E

121E; Telefunken; Budapest (ID = 1755653) Radio 121E; Telefunken; Budapest (ID = 1755654) Radio
121E; Telefunken; Budapest (ID = 1755656) Radio 121E; Telefunken; Budapest (ID = 1755657) Radio
121E; Telefunken; Budapest (ID = 1756628) Radio
Use red slider bar for more.

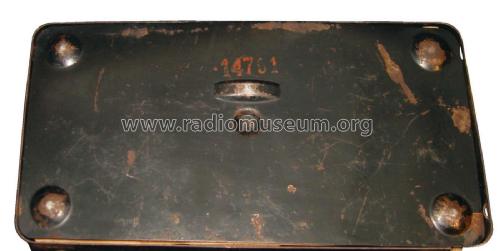

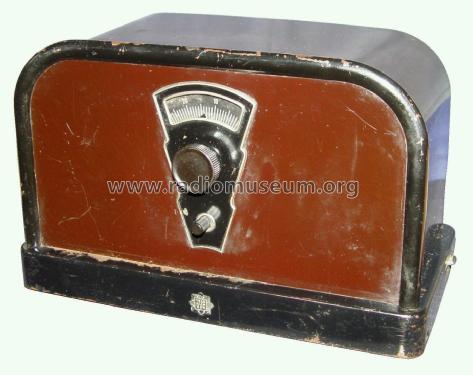

121E; Telefunken; Budapest (ID = 1755653) Radio
Telefunken; Budapest: 121E [Radio] ID = 1755653 1400x1109
Select picture or schematic to display from thumbnails on the right and click for download.
For model 121E, Telefunken; Budapest:
Thanks for Mr.Perneky Sándor, Verőce Rádiómúzeum ( radiomuzeum.hu ), and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Telefunken; Budapest
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2:
Main principle TRF with regeneration
Wave bands Broadcast only (MW).
Details
Power type and voltage Direct Current supply (DC) / 110-220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 121E - Telefunken; Budapest
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 270 x 170 x 140 mm / 10.6 x 6.7 x 5.5 inch
Price in first year of sale 173.00 pengő

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Telefunken; Budapest
Here you find 91 models, 86 with images and 68 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
