Néprádió 141V

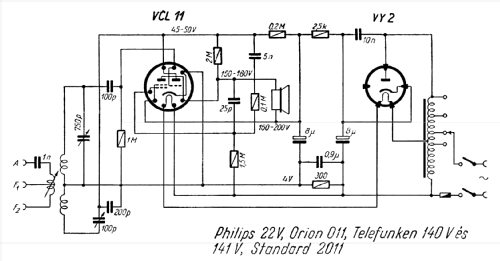

Néprádió 141V; Telefunken; Budapest (ID = 263652) Radio
Néprádió 141V; Telefunken; Budapest (ID = 585844) Radio Néprádió 141V; Telefunken; Budapest (ID = 275758) Radio
Néprádió 141V; Telefunken; Budapest (ID = 896858) Radio Néprádió 141V; Telefunken; Budapest (ID = 896860) Radio
Néprádió 141V; Telefunken; Budapest (ID = 896862) Radio Néprádió 141V; Telefunken; Budapest (ID = 896863) Radio
Néprádió 141V; Telefunken; Budapest (ID = 2348348) Radio
Use red slider bar for more.
Néprádió 141V; Telefunken; Budapest (ID = 585844) Radio
Telefunken; Budapest: Néprádió 141V [Radio] ID = 585844 673x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Néprádió 141V, Telefunken; Budapest:
Thanks for Mr.Kósa Endre Hungary! More info: ..szepradiok.hu/lampas.html

Country:  Hungary
Manufacturer / Brand:  Telefunken; Budapest
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: VCL11 VY2
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out
from Radiomuseum.org Model: Néprádió 141V - Telefunken; Budapest
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 240 x 250 x 120 mm / 9.4 x 9.8 x 4.7 inch
Price in first year of sale 45.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.



All listed radios etc. from Telefunken; Budapest
Here you find 91 models, 86 with images and 68 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
