341T

341T; Telefunken; Budapest (ID = 227242) Radio

341T; Telefunken; Budapest (ID = 2639106) Radio
341T; Telefunken; Budapest (ID = 133403) Radio 341T; Telefunken; Budapest (ID = 474487) Radio
341T; Telefunken; Budapest (ID = 2223102) Radio
Use red slider bar for more.

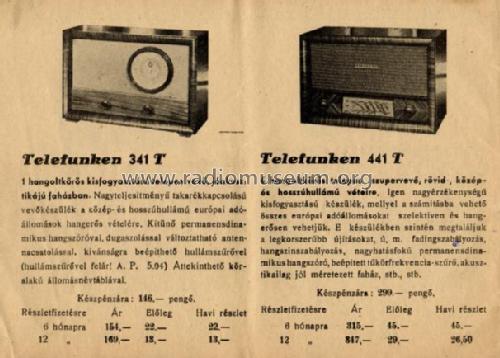

341T; Telefunken; Budapest (ID = 133403) Radio
Telefunken; Budapest: 341T [Radio] ID = 133403 276x228
Select picture or schematic to display from thumbnails on the right and click for download.
For model 341T, Telefunken; Budapest

Country:  Hungary
Manufacturer / Brand:  Telefunken; Budapest
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: KC1_p8 KC1_p8 KL5
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Tuned circuits 1 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage and/or dry batteries / 2, 10.5, 120 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 341T - Telefunken; Budapest
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes Uhrenskala.
Price in first year of sale 146.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.



All listed radios etc. from Telefunken; Budapest
Here you find 91 models, 86 with images and 68 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
