541V

541V; Telefunken; Budapest (ID = 212138) Radio

541V; Telefunken; Budapest (ID = 2639105) Radio
541V; Telefunken; Budapest (ID = 133231) Radio 541V; Telefunken; Budapest (ID = 474526) Radio
541V; Telefunken; Budapest (ID = 2223094) Radio
Use red slider bar for more.
541V; Telefunken; Budapest (ID = 133231) Radio
Telefunken; Budapest: 541V [Radio] ID = 133231 306x242
Select picture or schematic to display from thumbnails on the right and click for download.
For model 541V, Telefunken; Budapest

Country:  Hungary
Manufacturer / Brand:  Telefunken; Budapest
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF8 ECH4 EBF2 EF9 EM4 EL6 AZ4
Main principle Superhet with RF-stage; ZF/IF 472 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 541V - Telefunken; Budapest
Material Wooden case
Shape Tablemodel, low profile (big size).

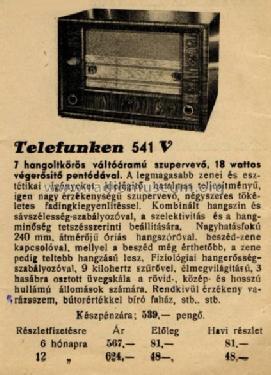

Price in first year of sale 539.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.
