Capricho U1925

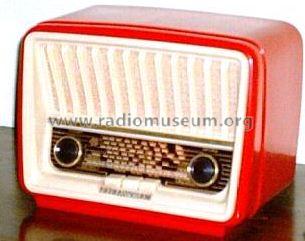

Capricho U1925; Telefunken (ID = 809450) Radio Capricho U1925; Telefunken (ID = 114337) Radio
Capricho U1925; Telefunken (ID = 809457) Radio Capricho U1925; Telefunken (ID = 809452) Radio
Capricho U1925; Telefunken (ID = 809453) Radio Capricho U1925; Telefunken (ID = 809454) Radio

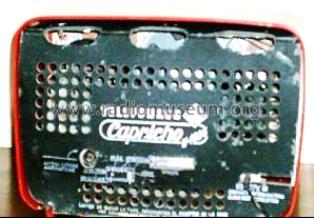

Capricho U1925; Telefunken (ID = 809451) Radio Capricho U1925; Telefunken (ID = 114338) Radio
Capricho U1925; Telefunken (ID = 114339) Radio Capricho U1925; Telefunken (ID = 809449) Radio
Use red slider bar for more.

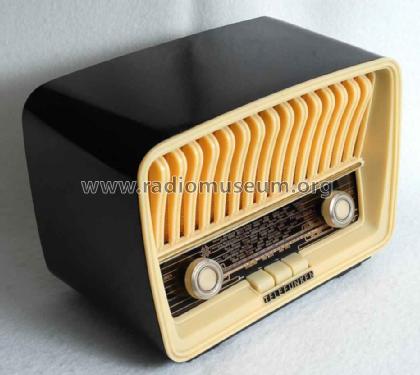

Capricho U1925; Telefunken (ID = 809450) Radio
Telefunken: Capricho U1925 [Radio] ID = 809450 933x832
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capricho U1925, Telefunken Radiotécnica Ibérica; Getafe

Country:  Spain
Manufacturer / Brand:  Telefunken Radiotécnica Ibérica; Getafe
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: HCH81 12BA6 12AV6 HL94 35W4
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110, 125 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Capricho U1925 - Telefunken Radiotécnica
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 268 x 155 x 189 mm / 10.6 x 6.1 x 7.4 inch
Notes El precio en 1960 pasó a ser 2185 pts. impuestos incluidos.
Price in first year of sale 2'150.00 ESP
External source of data Ernst Erb
Source of data Radio Historia y Técnica, J.J.E.
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (4) Anuncio La Vanguardia Española Octubre 1958 modelos 1959
