• Country
• Sweden

• Manufacturer / Brand
• Kooperativa Förbundet, Stockholm

• Year
• 1927 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 211015

• Number of Tubes
• 3

• Valves / Tubes
• RE074 RE074 or A409 RE134

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Powered by external power supply or a main unit. / 110/220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

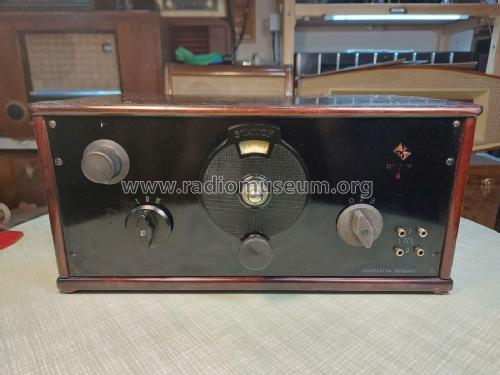

• Model: Hugin 3W - Kooperativa Förbundet,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 370 x 180 x 210 mm / 14.6 x 7.1 x 8.3 inch

• Notes

• See also model Hugin 3 intended for battery operation.

• Author
• Model page created by Achim Göhritz. See "Data change" for further contributors.

• Other Models

• Here you find 4 models, 4 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
