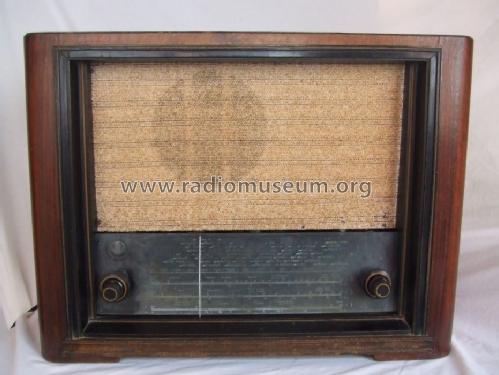

Ocean 1665A; Telefunken (ID = 1632900) Radio
Telefunken: Ocean 1665A [Radio] ID = 1632900 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ocean 1665A, Telefunken Radiotécnica Ibérica; Getafe

Country:  Spain
Manufacturer / Brand:  Telefunken Radiotécnica Ibérica; Getafe
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 ECF1 EBL1 AZ2 or AZ3 EM4
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Ocean 1665A - Telefunken Radiotécnica
Material Wooden case
Shape Tablemodel, low profile (big size).
Price in first year of sale 2'999.80 ESP

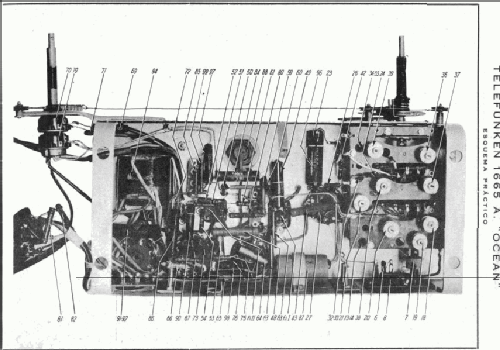

Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Telefunken Radiotécnica Ibérica; Getafe
Here you find 326 models, 278 with images and 239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
