Panchito 58 U1715; Telefunken (ID = 199290) Radio

Panchito 58 U1715; Telefunken (ID = 1932860) Radio
Panchito 58 U1715; Telefunken (ID = 1617891) Radio Panchito 58 U1715; Telefunken (ID = 558124) Radio
Panchito 58 U1715; Telefunken (ID = 601609) Radio Panchito 58 U1715; Telefunken (ID = 558130) Radio
Panchito 58 U1715; Telefunken (ID = 558127) Radio Panchito 58 U1715; Telefunken (ID = 558128) Radio
Panchito 58 U1715; Telefunken (ID = 558125) Radio Panchito 58 U1715; Telefunken (ID = 601608) Radio
Panchito 58 U1715; Telefunken (ID = 997220) Radio Panchito 58 U1715; Telefunken (ID = 1284446) Radio
Use red slider bar for more.
Panchito 58 U1715; Telefunken (ID = 1617891) Radio

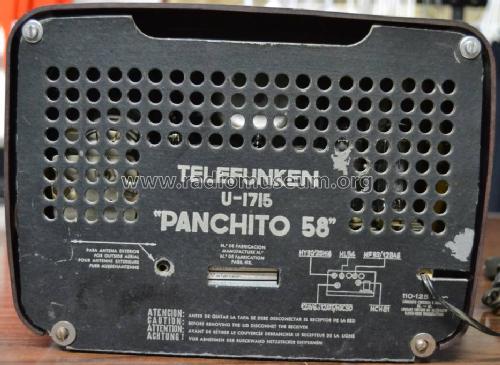

Telefunken: Panchito 58 U1715 [Radio] ID = 1617891 933x777
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panchito 58 U1715 HCH81, Telefunken Radiotécnica Ibérica; Getafe

Country:  Spain
Manufacturer / Brand:  Telefunken Radiotécnica Ibérica; Getafe
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: HCH81 HF93 HBC90 HL94 HY90
Main principle Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Panchito 58 U1715 [HCH81] - Telefunken Radiotécnica
Material Bakelite case
Shape Tablemodel with Push Buttons.
Notes Existe también el mismo modelo con la válvula conversora HK90 en lugar de la HCH81.
Price in first year of sale 2'061.00 Ptas

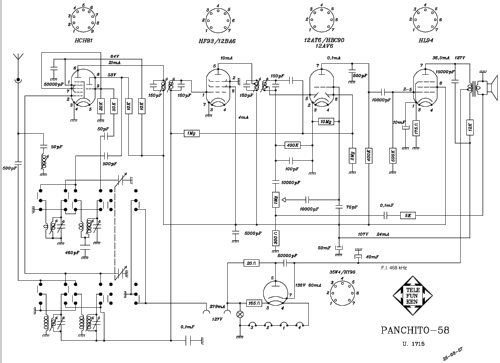

Literature/Schematics (1) -- Schematic

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Telefunken Radiotécnica Ibérica; Getafe
Here you find 348 models, 283 with images and 256 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken: Panchito 58 U1715
Threads: 1 | Posts: 1
Hits: 1949     Replies: 0
telefunken: U1715; Panchito 58
Juan Alvarez Alonso
26.Apr.12
  1

Estoy reparando el modelo indicado,Panchito 58U-1715,y a la hora de analizar el esquema,me di cuenta que la válvula indicada HCH81(conversora/osciladora) no es correcta,pues en el circuito real figura la HK90 y por supuesto,el aparato funciona correctamente.
