Dual Channel Oscilloscope D32

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553077) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553080) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553082) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553086) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553090) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553091) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553093) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553094) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553096) Equipment

Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 553097) Equipment
Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 542296) Equipment Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 542298) Equipment
Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 1892684) Equipment Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 1893241) Equipment
Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 1893243) Equipment Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 1893249) Equipment
Use red slider bar for more.
Dual Channel Oscilloscope D32; Telequipment Ltd.; (ID = 542296) Equipment
Telequipment Ltd.;: Dual Channel Oscilloscope D32 [Equipment] ID = 542296 923x700

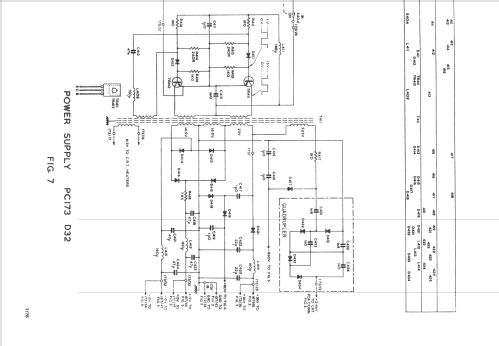

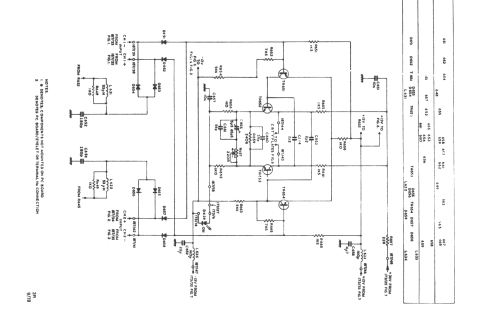

Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Channel Oscilloscope D32, Telequipment Ltd.; London:
Original-techn. papers.

Country:  Great Britain (UK)
Manufacturer / Brand:  Telequipment Ltd.; London
Year: 1976 ? Category: Service- or Lab Equipment
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 100-125/200-250/12-30DC Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Dual Channel Oscilloscope D32 - Telequipment Ltd.; London
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 230 x 105 x 288 mm / 9.1 x 4.1 x 11.3 inch
Notes Tragbarer 10MHz Zweikanal-Service Oszilloskop mit Batterie(Akku)betrieb. 5,6x7cm großer Bildschirm. Alternierender oder Chopperbetrieb möglich. Gerät kann mit den eingebauten Akkus 4 Std. betrieben werden.
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)
Price in first year of sale 2'200.00 DM
Source of data -- Original-techn. papers.
Mentioned in Funk-Technik (FT) (22/76 S. 739)

Model page created by Michael Mehnert. See "Data change" for further contributors.



All listed radios etc. from Telequipment Ltd.; London
Here you find 41 models, 41 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
