Serviscope S43

Serviscope S43; Telequipment Ltd.; (ID = 422434) Equipment Serviscope S43; Telequipment Ltd.; (ID = 422438) Equipment
Serviscope S43; Telequipment Ltd.; (ID = 422435) Equipment Serviscope S43; Telequipment Ltd.; (ID = 422436) Equipment
Serviscope S43; Telequipment Ltd.; (ID = 422439) Equipment Serviscope S43; Telequipment Ltd.; (ID = 735196) Equipment
Serviscope S43; Telequipment Ltd.; (ID = 1425361) Equipment Serviscope S43; Telequipment Ltd.; (ID = 1432097) Equipment
Use red slider bar for more.

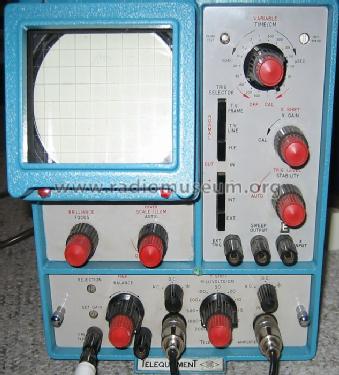

Serviscope S43; Telequipment Ltd.; (ID = 422434) Equipment
Telequipment Ltd.;: Serviscope S43 [Equipment] ID = 422434 633x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Serviscope S43, Telequipment Ltd.; London:
GB_Telequipent_S43

Country:  Great Britain (UK)
Manufacturer / Brand:  Telequipment Ltd.; London
Year: 1963 Category: Service- or Lab Equipment
Valves / Tubes 15: ECC88 ECC88 ECC88 ECC88 ECC88 ECF80 ECF80 ECF80 ECF80 ECF80 ECF80 EB91 EF184 EF184 SE4D
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Serviscope S43 - Telequipment Ltd.; London
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 210 x 260 x 400 mm / 8.3 x 10.2 x 15.7 inch

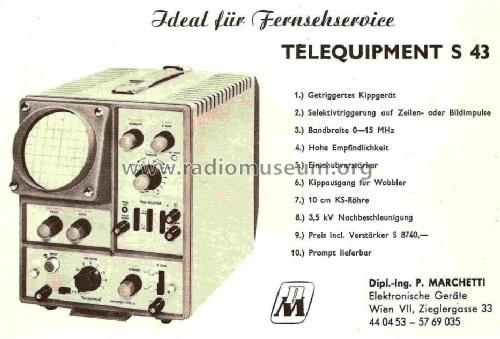

Notes Speziell für den Einsatz im Fernsehservice. Bandbreite 0..15 MHz. Selektivtriggerung auf Zeilen und Bildimpulse. Einschub-Verstärker. Kippausgang für Wobbler.10 cm KS-Röhre. 3,5 kV Nachbeschleunigung. Preis in Österreich incl. Verstärker im Jahre 1963 ATS 8740.- Generalvertretung in Wien: Dipl.-Ing. P. Marchetti
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Collectors' prices
Mentioned in -- Original-techn. papers.

Model page created by Klemens Rhode. See "Data change" for further contributors.
