Serviscope S42

Serviscope S42; Telequipment Ltd.; (ID = 233923) Equipment Serviscope S42; Telequipment Ltd.; (ID = 233924) Equipment

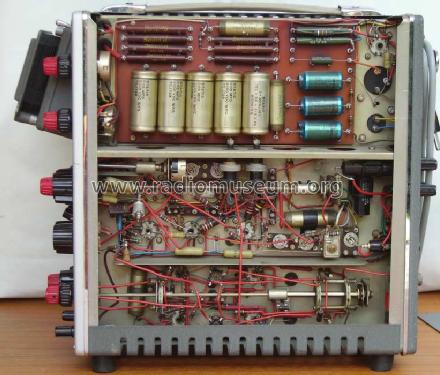

Serviscope S42; Telequipment Ltd.; (ID = 233926) Equipment
Use red slider bar for more.
Serviscope S42; Telequipment Ltd.; (ID = 233923) Equipment
Telequipment Ltd.;: Serviscope S42 [Equipment] ID = 233923 505x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Serviscope S42, Telequipment Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Telequipment Ltd.; London
Year: 1961/1962 ? Category: Service- or Lab Equipment
Valves / Tubes 11: ECF80 ECF80 ECF80 ECF80 ECF80 ECF80 ECF80 ECF80 ECF80 EZ81 unknown_Tube
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 200; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Serviscope S42 - Telequipment Ltd.; London
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 172 x 360 x 430 mm / 6.8 x 14.2 x 16.9 inch
Notes Single channel, time base 1 µs, 10 µs, 100 µs, 1 ms, 10 ms and time multiplier ×1 to ×50; TVL, TVF and HF-Trigger, Y-Amplifier 100 mV to 50 V and ×10 Preamplifier; scale illumisation, cal. and sweep output.
Price in first year of sale 92.00 GBP
Source of data -- Collector info (Sammler)

Model page created by Urs Gloor. See "Data change" for further contributors.
