Serviscope D33

Serviscope D33; Telequipment Ltd.; (ID = 637190) Equipment Serviscope D33; Telequipment Ltd.; (ID = 637176) Equipment
Serviscope D33; Telequipment Ltd.; (ID = 637178) Equipment Serviscope D33; Telequipment Ltd.; (ID = 637177) Equipment
Serviscope D33; Telequipment Ltd.; (ID = 637179) Equipment Serviscope D33; Telequipment Ltd.; (ID = 637181) Equipment
Serviscope D33; Telequipment Ltd.; (ID = 637183) Equipment Serviscope D33; Telequipment Ltd.; (ID = 637185) Equipment
Serviscope D33; Telequipment Ltd.; (ID = 637187) Equipment Serviscope D33; Telequipment Ltd.; (ID = 637188) Equipment
Use red slider bar for more.
Serviscope D33; Telequipment Ltd.; (ID = 637190) Equipment
Telequipment Ltd.;: Serviscope D33 [Equipment] ID = 637190 441x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Serviscope D33, Telequipment Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Telequipment Ltd.; London
Year: 1961/1962 Category: Service- or Lab Equipment
Valves / Tubes 17:
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Serviscope D33 - Telequipment Ltd.; London
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 200 x 310 x 490 mm / 7.9 x 12.2 x 19.3 inch

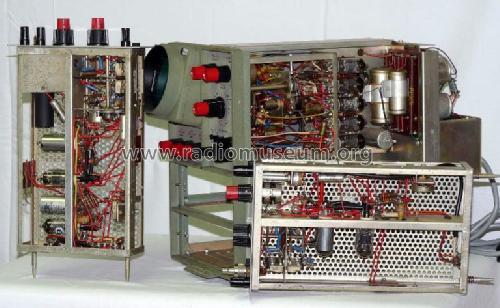

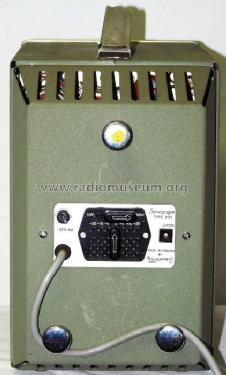

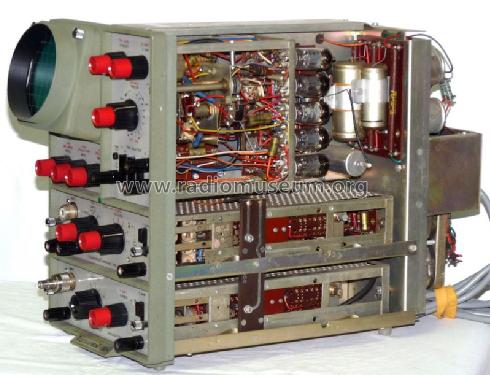

Notes Serviceoscilloscop (16 Röhren + Bildrohr), Bandbreite vertikal: 15 MHz (100mV/cm), Horizontal: 0,8MHz/10mV/cm, grüner Leuchtschirm mit einem Durchmesser von 9 cm, es lassen sich verschiedene steckbare Einschübe verwenden, im Gerät befinden sich Einschub 33C und Amplifier Type A, An der Rückseite lässt sich die Netzspannung mittels Steckbrücken zwischen -20/+20 Prozent anpassen
Net weight (2.2 lb = 1 kg) 15.2 kg / 33 lb 7.7 oz (33.48 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
