• Country
• Europe

• Manufacturer / Brand
• Teleton Gruppe

• Year
• 1972 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110010

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

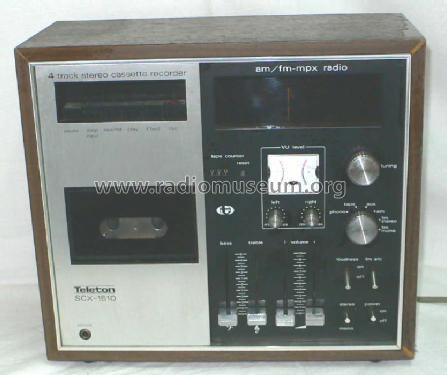

• Model: SCX-1510 - Teleton Gruppe

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 350 x 310 x 170 mm / 13.8 x 12.2 x 6.7 inch

• Notes
• 2 VU-Meter, Eingänge für Phono, AUX und 2× Mikrofon, 2 LS-Buchsen.

• Net weight (2.2 lb = 1 kg)
• 6.6 kg / 14 lb 8.6 oz (14.537 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.

• Other Models

• Here you find 58 models, 54 with images and 19 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
