• Country
• Europe

• Manufacturer / Brand
• Teleton Gruppe

• Year
• 1978

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 178547

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• 2SD313

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

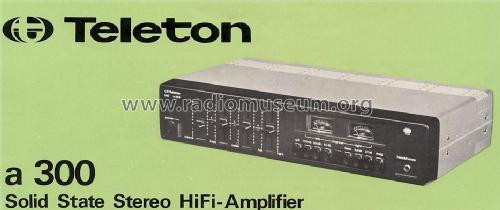

• Model: Solid State Stereo HiFi Amplifier A-300 - Teleton Gruppe

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 422 x 98 x 230 mm / 16.6 x 3.9 x 9.1 inch

• Notes

• Teleton HiFi A300, Solid State Stereo HiFi Amplifier; 2 VU meters

  Kunststoffgehäuse in schwarz oder silber

  Eingänge:

  • Phono Mag. 3 mV/ 47 kΩ
  • Phono Kristall 150 mV/ 47 kΩ
  • Tuner/ AUX 200 mV/ 100 kΩ
  • Tonband 250 mV/ 100 kΩ

  Ausgänge:

  • 2 Lautsprecherpaare
  • Tonband 50 mV/ 47 kΩ
  • Kopfhörer 4 - 16 Ω

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original prospect or advert (Teleton HiFi Komponenten 1978/79)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
