• Country
• Europe

• Manufacturer / Brand
• Teleton Gruppe

• Year
• 1978 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176010

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• GN1039 TA7060 LA3300

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

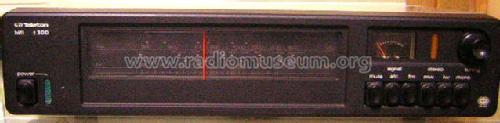

• Model: T-300 - Teleton Gruppe

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 425 x 110 x 245 mm / 16.7 x 4.3 x 9.6 inch

• Notes

• Wellenbereiche:
  UKW 87,5 - 104 MHz
  MW 510 - 1606 kHz
  LW 145 - 350 kHz

  Gehäusefarbe: silber oder schwarz.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
