For model 135 Ch= H, Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY):

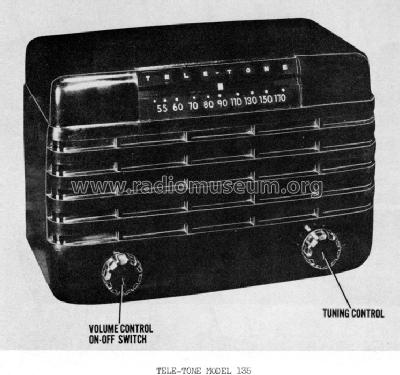

Tele-Tone Model 135 Front view, unrestored.

Country:  United States of America (USA)
Manufacturer / Brand:  Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)
alternative name

Teletone
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 135 Ch= H - Tele-Tone Radio Corp., Tele-
Material Bakelite or Plastics (type unknown)
Shape Tablemodel, with any shape - general.
Notes The Tele-tone model 135 is an AC-DC Operated Superheterodyne Receiver with Self Contained Loop Antenna.
Source of data Collector's Guide to Antique Radios (6th edition)
Mentioned in Rider's Perpetual, Volume 16 = covering late 1946 to early 1947

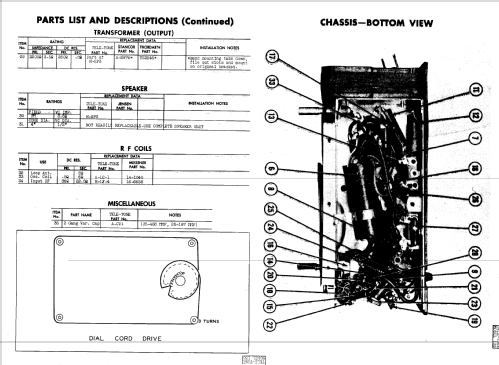

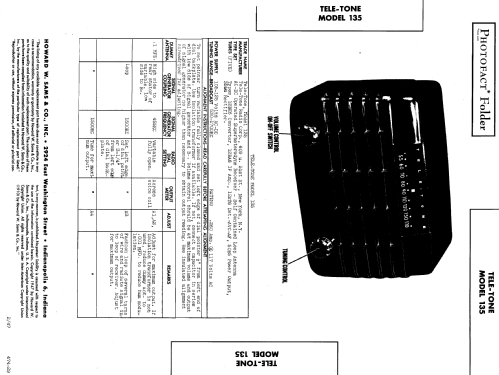

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date: Feb 1947, Set 14, Folder 474-)
Literature/Schematics (2) Machine Age to Jet Age II (page 298.)

Model page created by Peter Hoddow. See "Data change" for further contributors.
