• Country
• Switzerland

• Manufacturer / Brand
• Télévox (TELEVOX SA); Neuchâtel

• Year
• 1924/1925

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13664

• Number of Tubes
• 3

• Valves / Tubes

• Main principle
• TRF without regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 80 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

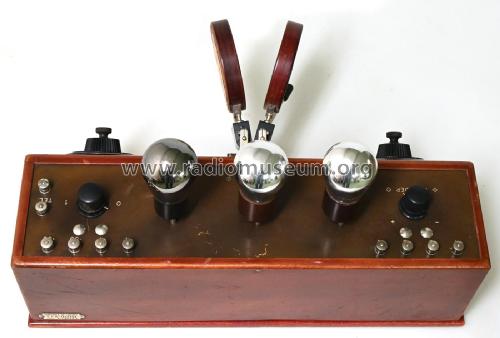

• Model: 3-Röhren-Empfänger alt - Télévox TELEVOX SA; Neuchâtel

• Shape
• Tablemodel, slant panel.

• Dimensions (WHD)
• 430 x 145 x 280 mm / 16.9 x 5.7 x 11 inch

• Notes

• Steckspulen je aussen, Rö Mitte [322502B]

  Höhe mit Röhren 22,5 cm, Tiefe inkl. Spulen.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Price in first year of sale
• 270.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 27 models, 19 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Télévox (TELEVOX SA); Neuchâtel
