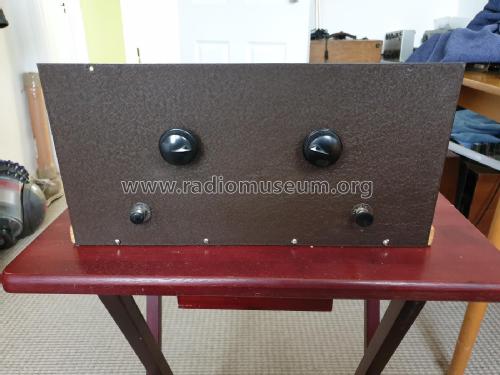

Telsen 3 Kit

Telsen Electric Co. Ltd.; Birmingham & Manchester

Data
Forum
Pictures
Collections

  • Year
  • 1931
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 330406

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • TRF (Tuned-Radio-Frequency but use of regeneration unknown)
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage and/or dry batteries / 120 + 2 + 9 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case, TUBES VISIBLE
  • from Radiomuseum.org
  • Model: Telsen 3 Kit - Telsen Electric Co. Ltd.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 14 x 11 x 9 inch / 356 x 279 x 229 mm
  • Notes

  • This is advertised in the December 1931 edition of Popular Wireless magazine.

    Kit form using batteries only,  HT 120v, Accumulator 2v, GB 9v.  Price £1 19s 6d chassis only.

  • Net weight (2.2 lb = 1 kg)
  • 1.6 kg / 3 lb 8.4 oz (3.524 lb)
  • Price in first year of sale
  • 1.98 £
  • Mentioned in
  • -- Original prospect or advert (Popular Wireless dated Dec 12 1931)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Christopher Near. See "Data change" for further contributors.
