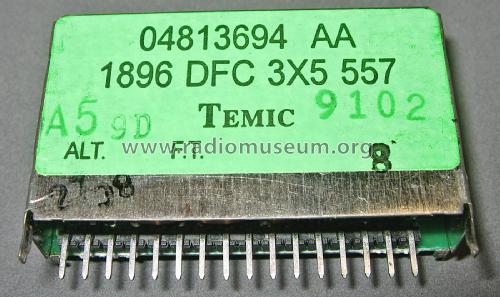

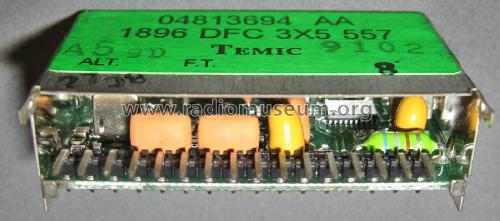

FM-Tuner 1896 DFC 3X5 557

TEMIC Telefunken microelectronic GmbH; Heilbronn

Data
Forum
Pictures
Collections

  • Year
  • 1995 ??
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 316185

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 10700 kHz
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC: 7,5 - 12 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: FM-Tuner 1896 DFC 3X5 557 - TEMIC Telefunken
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 45 x 30 x 15 mm / 1.8 x 1.2 x 0.6 inch
  • Notes

  • FM-Tuner für Autoradios.
    Antenneneingangsimpedanz: 50 Ω; Frequenzbereich: 87,5 MHz bis 107,9 MHz, benötigte Abstimmspannung: 1,5 bis 7,5 V.

    Anschlußbelegung:
      1 = Multipath
      2 = Mute Off
      3 = Field Strength Stereo/Mono Blend
      4 = MPX output
      5 = GND
      6 = Stop Signal
      7 = GND
      8 = Supply Voltage
      9 = Oscillator Output
    10 = NC
    11 = GND
    12 = Tuning Voltage
    13 = LO/DX
    14 = GND
    15 = Antenna
    16 = GND

  • Net weight (2.2 lb = 1 kg)
  • 0.015 kg / 0 lb 0.5 oz (0.033 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
