For model G-418, Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT

Country:  United States of America (USA)
Manufacturer / Brand:  Templetone Radio Mfg. Corp. (Temple); Mystic, New London, CT
Brand

Temple
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12SA7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: G-418 - Templetone Radio Mfg. Corp.
Material Metal case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 8 x 6 x 4.5 inch / 203 x 152 x 114 mm
Notes Automatic volume control. Available in 4 colors - walnut, ivory, Chinese Red and powder blue.
Price in first year of sale 12.95 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Mentioned in Collector's Guide to Antique Radios 4. Edition

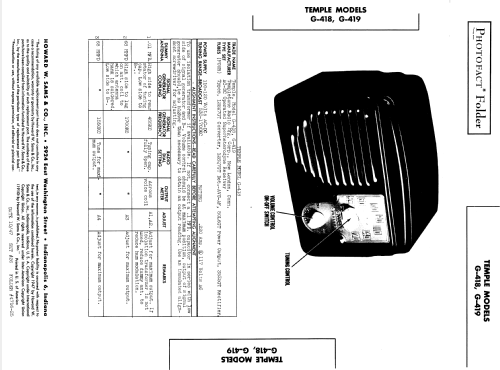

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 26, Folder 4716-25)
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (September 1947 page 39.)
