Grandmother Clock Radio R3G

Tempovox, Hampton Hill

Data

Forum

Pictures

Collections

Country
Great Britain (UK)

Manufacturer / Brand
Tempovox, Hampton Hill

Year
1938

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
78742

Schematics

Grandmother Clock Radio R3G; Tempovox, Hampton (ID = 297726) Radio — Tempovox, Hampton Grandmother Clock Radio R3G (3)

Grandmother Clock Radio R3G; Tempovox, Hampton (ID = 297728) Radio — Tempovox, Hampton Grandmother Clock Radio R3G (3)

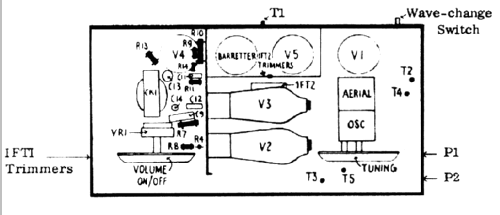

Grandmother Clock Radio R3G; Tempovox, Hampton (ID = 297730) Radio — Tempovox, Hampton Grandmother Clock Radio R3G (3)

Grandmother Clock Radio R3G; Tempovox, Hampton (ID = 297733) Radio — Tempovox, Hampton Grandmother Clock Radio R3G (3)

Grandmother Clock Radio R3G; Tempovox, Hampton (ID = 297735) Radio — Tempovox, Hampton Grandmother Clock Radio R3G (3)

Grandmother Clock Radio R3G; Tempovox, Hampton (ID = 297399) Radio — Tempovox, Hampton Grandmother Clock Radio R3G (1)
Tempovox model RG3

Grandmother Clock Radio R3G; Tempovox, Hampton (ID = 479940) Radio — Tempovox, Hampton Grandmother Clock Radio R3G (1)

Grandmother Clock Radio R3G; Tempovox, Hampton (ID = 479942) Radio — Tempovox, Hampton Grandmother Clock Radio R3G (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
202STH 13VPA 202DDT 402OT 40SUA BR201

Main principle
Superheterodyne (common); ZF/IF 465 kHz

Wave bands
Broadcast (MW) and Long Wave.

Power type and voltage
AC/DC-set

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Wooden case

from Radiomuseum.org
Model: Grandmother Clock Radio R3G - Tempovox, Hampton Hill

Shape
Grandfather Clock with Radio.

Dimensions (WHD)
14 x 57 x 7 inch / 356 x 1448 x 178 mm

Notes
Spring-wound movement.

Source of data
Radio! Radio!

Literature/Schematics (1)
-- Schematic

Author
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

Other Models
Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
