CB Transceiver OF 670 M

Tenko (HK) Ltd., Kowloon, Hong Kong

  • Year
  • 1973 ??
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 337059

 Technical Specifications

  • Number of Transistors
  • 19
  • Semiconductors
  • Main principle
  • Transceiver
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 - 16 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: CB Transceiver OF 670 M - Tenko HK Ltd., Kowloon, Hong
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 125 x 70 x 195 mm / 4.9 x 2.8 x 7.7 inch
  • Notes
  • CB 27 MHz transceiver. 23 channels equipped with quartz. Noise limiter, squelch control. Signal strength indicator. Input power to the final stage: 5 Watts. Audio output: 2.5 Watt.

    19 transistors, 11 diodes and 1 IC.

  • Mentioned in

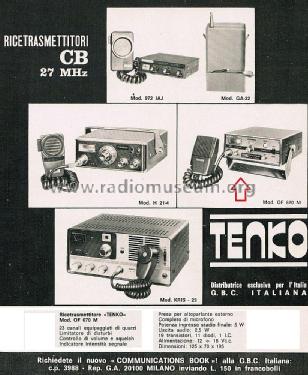

  • -- Original prospect or advert (From Italian magazine “CQ Elettronica”, CD editor, special number 1, January 1973.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
