• Country
• France

• Manufacturer / Brand
• Teppaz; Lyon

• Year
• 1950

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 234968

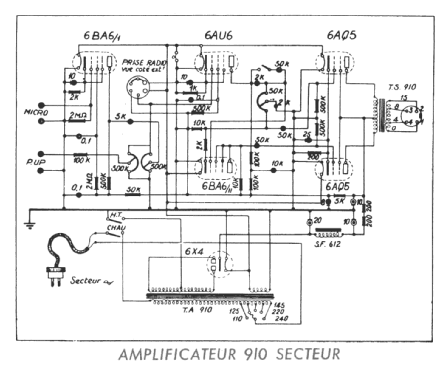

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 6BA6 6AU6 6AQ6 6AQ6 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Amplificateur 910 [Secteur] - Teppaz; Lyon

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 240 x 200 x 120 mm / 9.4 x 7.9 x 4.7 inch

• Notes

• Amplificateur portatif 910 Secteur, de faible poids et volume. Classe AB1. Deux entrées Micro et Pick-Up. Prise alimentation Preampli-Radio 910.

  Coffret émaille givré havane. Consommation 60 W. Versions 25 périodes et tropicalisées sur demande.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Mentioned in
• -- Original prospect or advert
