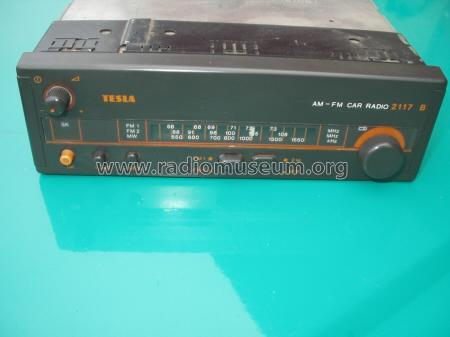

2117 B

Tesla; Praha, Bratislava etc.

Data
Forum
Pictures
Collections

  • Year
  • 1990 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 131628
    • Brand: Supraphon

 Technical Specifications

  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
  • Power out
  • 7 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 2117 B - Tesla; Praha, Bratislava etc.
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 154 x 59 x 186 mm / 6.1 x 2.3 x 7.3 inch
  • Notes
  • 2 UKW-Bereiche: OIRT 66...73,5 MHz und CCIR 88...108 MHz, AFC, Lautsprecher 15 Watt, 8 Ohm ist im Lieferumfang, wird aber getrennt vom Gerät unter dem Armaturenbrett eingebaut. Im UKW-Tuner 1× Fet BF245, KD135, 4× KC238A, KC238C, 3× KF255, KF254.
  • Net weight (2.2 lb = 1 kg)
  • 0.9 kg / 1 lb 15.7 oz (1.982 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
