• Year
  • 1977/1978
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 107369
    • Brand: Supraphon

 Technical Specifications

  • Number of Transistors
  • 76
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 8 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 30 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

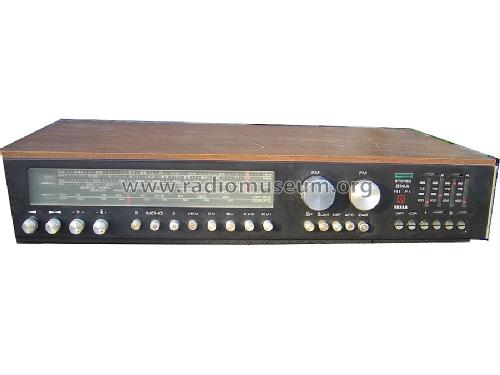

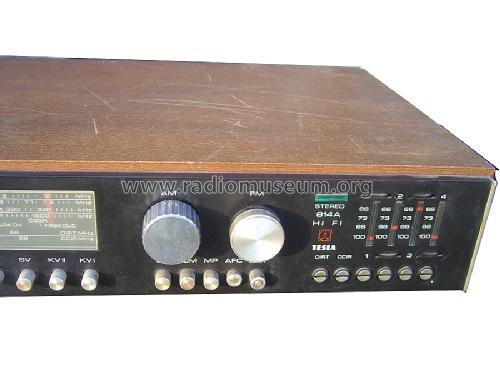

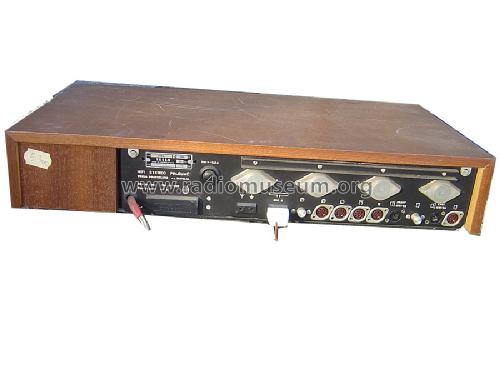

  • Model: 814A - Tesla; Praha, Bratislava etc.
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 540 x 120 x 300 mm / 21.3 x 4.7 x 11.8 inch
  • Notes
  • OIRT und CCIR; 2× 15 Watt Sinus; 4 Sensoren für FM-Bereich; Feldstärkeanzeige, AFC. 76 Transistoren, 59 Dioden
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
