Akcent 2812B

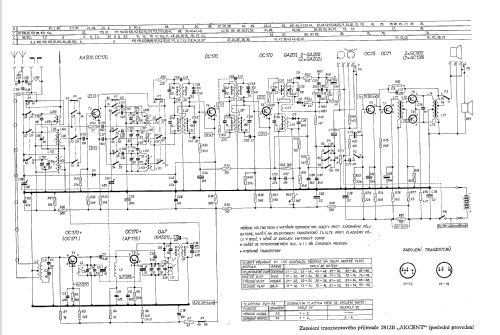

Akcent 2812B; Tesla; Praha, (ID = 180592) Radio
Akcent 2812B; Tesla; Praha, (ID = 239371) Radio
Use red slider bar for more.
Akcent 2812B; Tesla; Praha, (ID = 239371) Radio
Tesla; Praha,: Akcent 2812B [Radio] ID = 239371 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Akcent 2812B, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Akcent 2812B - Tesla; Praha, Bratislava etc.
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 165 x 80 mm / 10.8 x 6.5 x 3.1 inch
Notes Transistoren: 5× 0C170, 0C75, OC71, 2× GC500. OIRT-Band. Anschluss für TB und Plattenspieler. Teleskopantenne für KW/UKW, Ferritantenne für MW/LW.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Price in first year of sale 1'400.00 CSK
Mentioned in Ceskoslovenske Rozhlasove a Televizni Prijimace a Zesilovace

Model page created by Wolfgang Lill. See "Data change" for further contributors.
