AMD103

AMD103; Tesla; Praha, (ID = 1119311) Microphone/PU AMD103; Tesla; Praha, (ID = 1615119) Microphone/PU
AMD103; Tesla; Praha, (ID = 2093784) Microphone/PU AMD103; Tesla; Praha, (ID = 2093785) Microphone/PU
AMD103; Tesla; Praha, (ID = 2093786) Microphone/PU
Use red slider bar for more.
AMD103; Tesla; Praha, (ID = 1119311) Microphone/PU

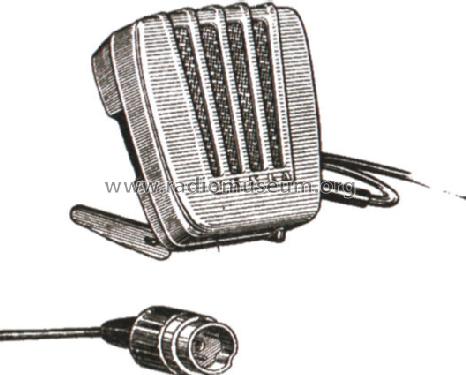

Tesla; Praha,: AMD103 [Microphone/PU] ID = 1119311 529x425
Select picture or schematic to display from thumbnails on the right and click for download.
For model AMD103, Tesla; Praha, Bratislava etc.:
Bild aus "Katalog radiotechnického zboží 1965"

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1958–1965 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AMD103 - Tesla; Praha, Bratislava etc.
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 60 x 66 x 32 mm / 2.4 x 2.6 x 1.3 inch
Notes Elektrodynamisches Mikrofon, Übertragungsbereich: 50...12500 Hz, Ausgangsimpedanz: 200 Ohm, Kugelcharakteristik. Speziell zum Tonbandgerät Sonett produziert.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
