ARE5604
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 2005 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 276796
-
- Brand: Supraphon
Tesla Werkszeichnung
- Wave bands
- - without
- Power type and voltage
- No Power needed

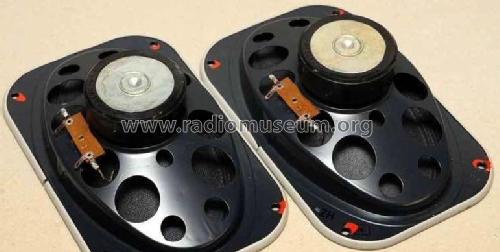

- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: ARE5604 - Tesla; Praha, Bratislava etc.
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 200 x 67 x 125 mm / 7.9 x 2.6 x 4.9 inch
- Notes
-
Impedanz: 4 Ohm, Musikbelastung 6 Watt. Übertragungsbereich: 80...14000 Hz, 88 dB.
- Net weight (2.2 lb = 1 kg)
- 0.390 kg / 0 lb 13.7 oz (0.859 lb)
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
