• Year
  • 1972 ??
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 111813
    • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

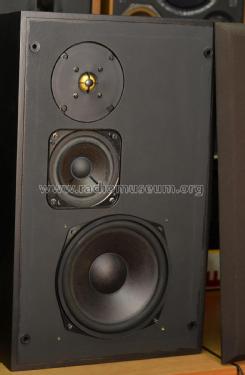

  • Model: ARS1038 - Tesla; Praha, Bratislava etc.
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 340 x 550 x 245 mm / 13.4 x 21.7 x 9.6 inch
  • Notes
  • Lautsprecherbox mit 1× ARN6604, 1× ARZ 4604 und 1× ARV3604; Sinusleistung 25 Watt, Musikspitzenleistung 75 Watt, Übertragungsbereich 35...20000 Hz, Volumen 30 Liter, 8 Ohm.
  • Net weight (2.2 lb = 1 kg)
  • 12.5 kg / 27 lb 8.5 oz (27.533 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
