ARS211

ARS211; Tesla; Praha, (ID = 1420785) Speaker-P
ARS211; Tesla; Praha, (ID = 277883) Speaker-P ARS211; Tesla; Praha, (ID = 277884) Speaker-P
ARS211; Tesla; Praha, (ID = 277885) Speaker-P ARS211; Tesla; Praha, (ID = 1326370) Speaker-P
ARS211; Tesla; Praha, (ID = 1326371) Speaker-P ARS211; Tesla; Praha, (ID = 1326372) Speaker-P
ARS211; Tesla; Praha, (ID = 1326373) Speaker-P ARS211; Tesla; Praha, (ID = 1326374) Speaker-P
ARS211; Tesla; Praha, (ID = 1420782) Speaker-P ARS211; Tesla; Praha, (ID = 1420783) Speaker-P
Use red slider bar for more.

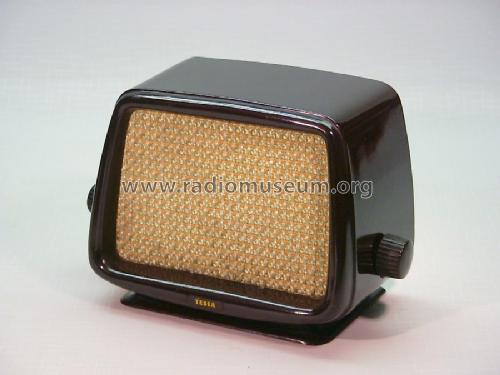

ARS211; Tesla; Praha, (ID = 277883) Speaker-P
Tesla; Praha,: ARS211 [Speaker-P] ID = 277883 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model ARS211, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1958 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 0.7 W (unknown quality)
from Radiomuseum.org Model: ARS211 - Tesla; Praha, Bratislava etc.
Material Bakelite case
Dimensions (WHD) 190 x 149 x 115 mm / 7.5 x 5.9 x 4.5 inch

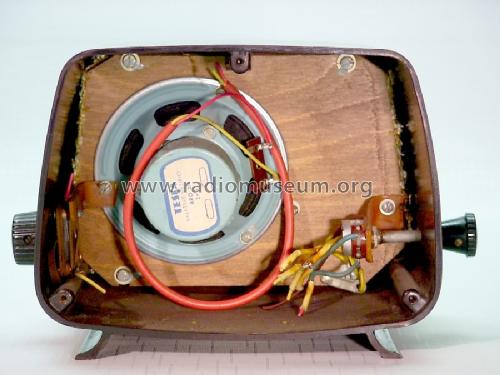

Notes 100 V/0,7 W for p.a. applications. Cabinet contains loudspeaker ARO211 (4 Ohms), potentiometer with on/off switch, and a variable capacitor (presumably for tone control?).
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Source of data - - Data from my own collection

Model page created by Peter Spies. See "Data change" for further contributors.
