• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1985–1987

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104461

• • Brand: Supraphon

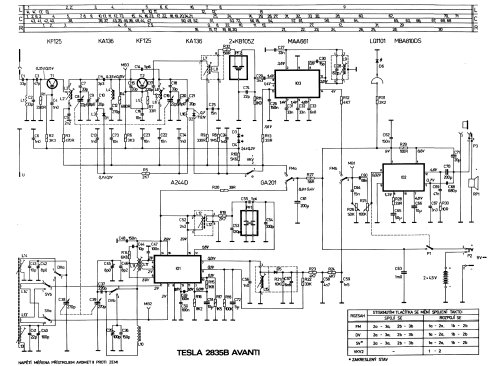

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• KF125_Transistor KF125_Transistor MAA661 A244D MBA810

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

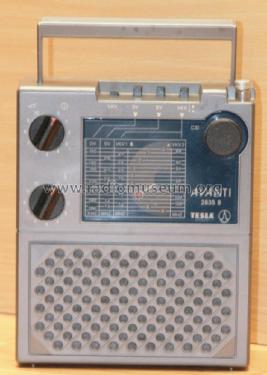

• Model: Avanti 2835B - Tesla; Praha, Bratislava etc.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 155 x 190 x 80 mm / 6.1 x 7.5 x 3.1 inch

• Notes
• UKW: 66-73 und 88-108 MHz, LED Diode, Teleskopantenne, Überspielausgang und Zweitlautsprecheranschluss. Drei ICs, A244D, MAA661 und TBA810DS.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Price in first year of sale
• 980.00 CSK

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
