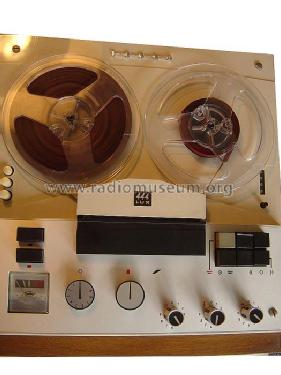

B444 Lux - ANP240

Tesla; Praha, Bratislava etc.

  • Year
  • 1971–1973
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 129470
    • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 13
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: B444 Lux - ANP240 - Tesla; Praha, Bratislava etc.
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 360 x 170 x 340 mm / 14.2 x 6.7 x 13.4 inch
  • Notes
  • 4-spur-Monogerät, Bandgeschwindigkeiten 2,36, 4,76, 9,53 cm/s, Anschluß für externen Lautsprecher, Acryldeckel, Luxusausführung des B400

    The difference between B444 Lux (ANP240) and B444 Lux Super (ANP240A or ANP240B) is a function of the right large knob:

    B444 Lux - manual recording level from radio and microphone

    B444 Lux Super - switch between manual and automatic recording level

  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
