B45 ANP224

B45 ANP224; Tesla; Praha, (ID = 176265) R-Player
B45 ANP224; Tesla; Praha, (ID = 2302514) R-Player B45 ANP224; Tesla; Praha, (ID = 454361) R-Player
B45 ANP224; Tesla; Praha, (ID = 454362) R-Player B45 ANP224; Tesla; Praha, (ID = 1299862) R-Player
B45 ANP224; Tesla; Praha, (ID = 1299863) R-Player B45 ANP224; Tesla; Praha, (ID = 1299864) R-Player
B45 ANP224; Tesla; Praha, (ID = 1299865) R-Player B45 ANP224; Tesla; Praha, (ID = 1457330) R-Player
B45 ANP224; Tesla; Praha, (ID = 2302513) R-Player B45 ANP224; Tesla; Praha, (ID = 2302516) R-Player
Use red slider bar for more.

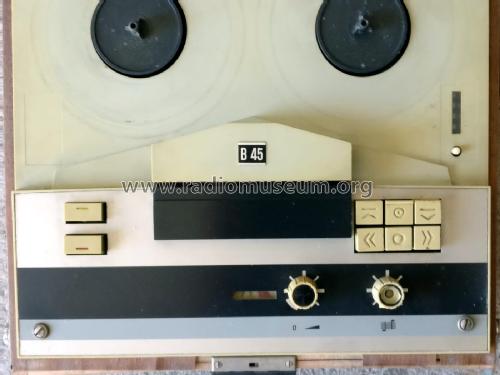

B45 ANP224; Tesla; Praha, (ID = 2302514) R-Player
Tesla; Praha,: B45 ANP224 [R-Player] ID = 2302514 1400x1049
Select picture or schematic to display from thumbnails on the right and click for download.
For model B45 ANP224, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1969/1970 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8:
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: B45 ANP224 - Tesla; Praha, Bratislava etc.
Material Various materials
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 350 x 150 x 350 mm / 13.8 x 5.9 x 13.8 inch
Notes 4-Spur-Monotonbandgerät; 9,53 cm/s; Übertragungsbereich: 50...14000 Hz; Transistoren: 4× 106NU70, 104NU71, GC507, 2× 2NU72, Gehäuse mit Holzrahmen, Laufwerk aus B4-Reihe.
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
