• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1972/1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 88375

• • Brand: Supraphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• KC509 KC508 KC508 KC508 KC508 KC508 106NU70 155NU70 GC512 GC511K GC521K

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

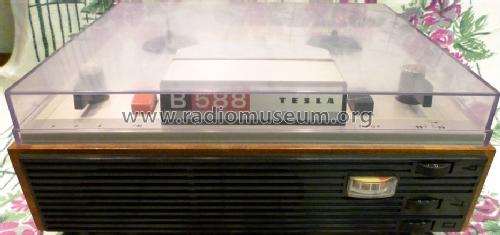

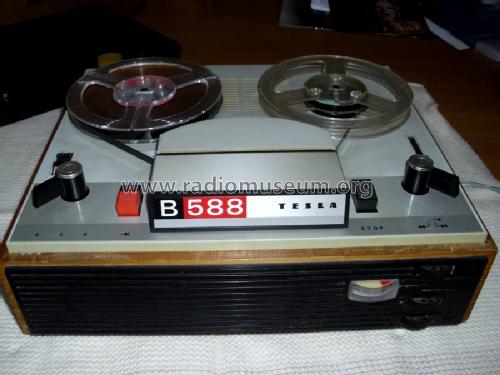

• Model: B588 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 335 x 115 x 275 mm / 13.2 x 4.5 x 10.8 inch

• Notes
• Geschwindigkeiten: 4,76/9,53 cm/s.
  Bei 9,5 cm/s, Übertragungsbandbreite: 50..14000 Hz; manuelle und automatische Aufnahmeaussteuerung, Abdeckhaube aus Plexiglas. Einfachere mechanische und elektrische Konstruktion als bei B4-Baureihe.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
