B5 ANP230

• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1969 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114169

• • Brand: Supraphon

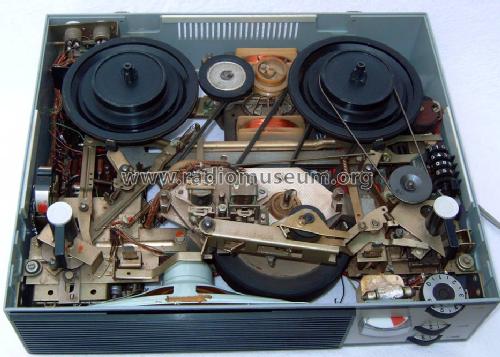

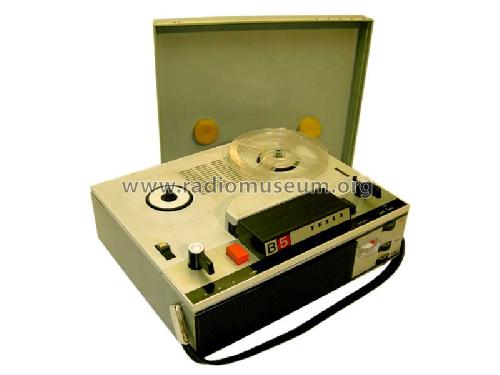

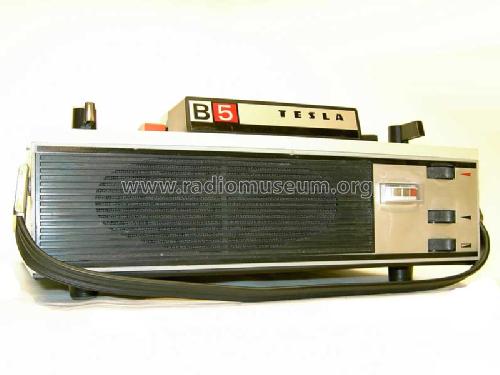

• Picture

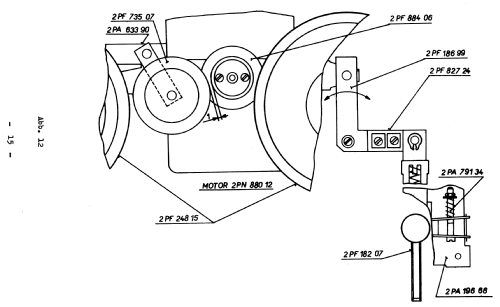

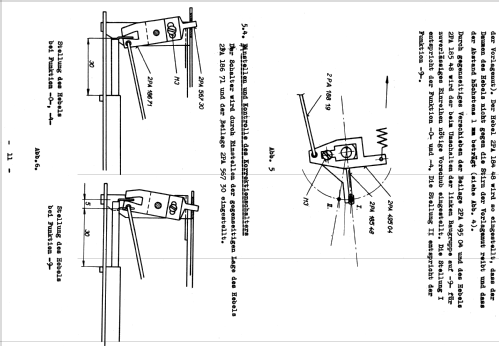

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: B5 ANP230 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 335 x 115 x 275 mm / 13.2 x 4.5 x 10.8 inch

• Notes
• 4-spur Tonbandgerät, Bandgeschwindigkeiten 4,76 und 9,53 cm/s, Übertragungsbereich: 50....14000 Hz bei 9,53 cm/s. Eingänge für Mikrofon, Radio, Plattenspieler. Ausgänge: Zweitlautsprecher, Überspielausgang

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Price in first year of sale
• 2,800.00 Kčs

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• Magnetofony 2, 1971-1975, Bozdech J.

• Literature/Schematics (4)
• Rádiótechnika évkönyv, 1972.

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
