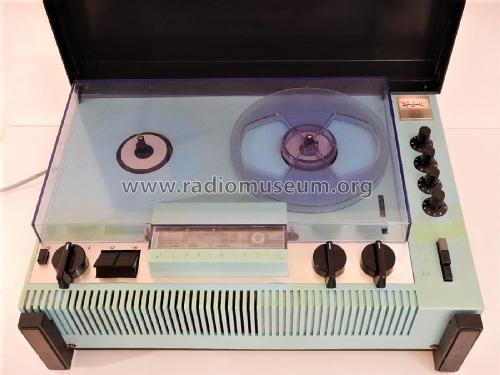

B70 ANP260; Tesla; Praha, (ID = 483461) R-Player
Tesla; Praha,: B70 ANP260 [R-Player] ID = 483461 900x675

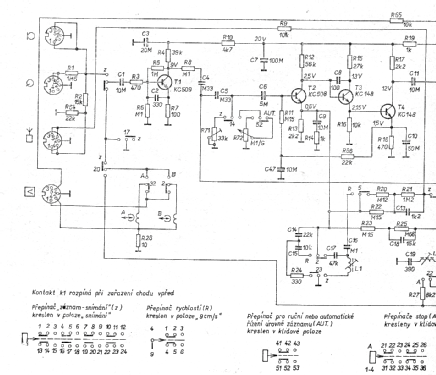

Select picture or schematic to display from thumbnails on the right and click for download.
For model B70 ANP260, Tesla; Praha, Bratislava etc.:
bitte die alten Bilder löschen, danke

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1973–1976 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 14: KC509 KC508 KC148 KC148 KC148 KF520 GC512 GC510 KC148 KC148 GC510 GC520 GD617 GD617
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: B70 ANP260 - Tesla; Praha, Bratislava etc.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 450 x 140 x 300 mm / 17.7 x 5.5 x 11.8 inch
Notes 4-Spur-Monotonbandgerät; 4,76/9,53 cm/s, Übertragungsbereich: 50...15000 Hz bei 9,53 cm/s, horizontaler oder vertikaler Betrieb möglich. Abdeckhaube aus Plexiglas.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 895.00 Mark
Source of data -- Collector info (Sammler)
Mentioned in Sortimentskatalog Elektroakustik (DDR, 1976)
Literature/Schematics (1) Importgeräteservice- CD vom Funkverlag B. Hein.

Model page created by Wolfgang Lill. See "Data change" for further contributors.
