• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97820

• • Brand: Supraphon

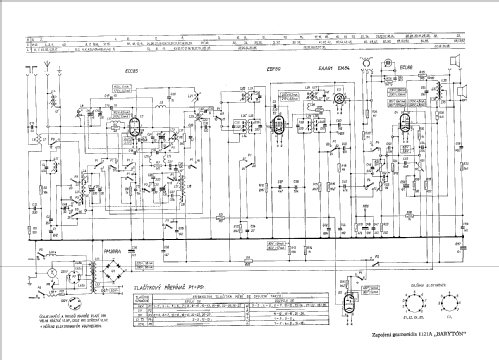

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 EBF89 EAA91 ECL86 EM84

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 120/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 16 cm = 6.3 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

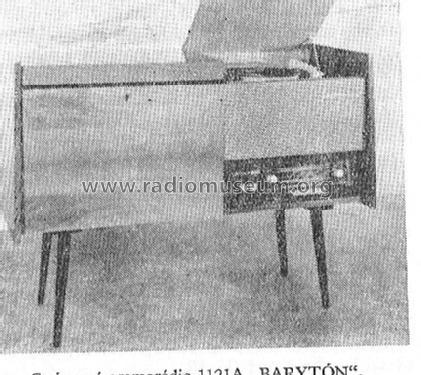

• Model: Barytón 1121A - Tesla; Praha, Bratislava etc.

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• OIRT-Band 73,5-65,5 MHz; Plattenspieler 16/33/45/78 UpM, automatische Endabschaltung, piezoelektrischer Tonabnehmer.

• Mentioned in
• Ceskoslovenske Rozhlasove a Televizni Prijimace a Zesilovace

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
