Capri 2830B
Tesla; Praha, Bratislava etc.
- Country
- Czechoslovakia
- Manufacturer / Brand
- Tesla; Praha, Bratislava etc.
- Year
- 1972/1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 87173
-
- Brand: Supraphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 2 × 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 11.7 cm = 4.6 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

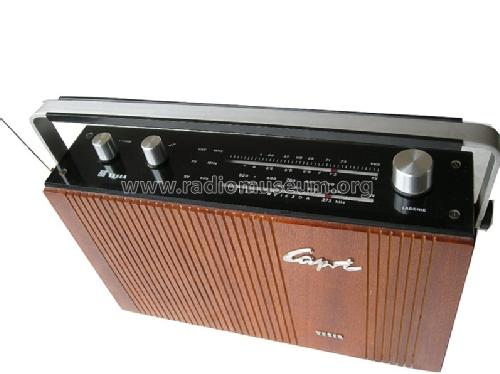

- Model: Capri 2830B - Tesla; Praha, Bratislava etc.
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 287 x 173 x 73 mm / 11.3 x 6.8 x 2.9 inch
- Notes
- Transistoren: 2× GF506, 2× GT322, OC170, 107NU70, KC508, GC511, GC521. UKW: OIRT-Band, Ferrit- und Teleskopantenne.
- Price in first year of sale
- 1,130.00 Kčs
- Source of data
- - - Data from my own collection
- Literature/Schematics (1)
- Tesla Výrobky spotřební elektroniky 73-74
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
