Flugfunkgerät LS-5

Flugfunkgerät LS-5; Tesla; Praha, (ID = 1456045) Commercial TRX Flugfunkgerät LS-5; Tesla; Praha, (ID = 1456046) Commercial TRX
Flugfunkgerät LS-5; Tesla; Praha, (ID = 1456047) Commercial TRX Flugfunkgerät LS-5; Tesla; Praha, (ID = 1456048) Commercial TRX
Flugfunkgerät LS-5; Tesla; Praha, (ID = 1456049) Commercial TRX Flugfunkgerät LS-5; Tesla; Praha, (ID = 1456050) Commercial TRX
Flugfunkgerät LS-5; Tesla; Praha, (ID = 1456051) Commercial TRX
Use red slider bar for more.
Flugfunkgerät LS-5; Tesla; Praha, (ID = 1456045) Commercial TRX
Tesla; Praha,: Flugfunkgerät LS-5 [Commercial TRX] ID = 1456045 779x595

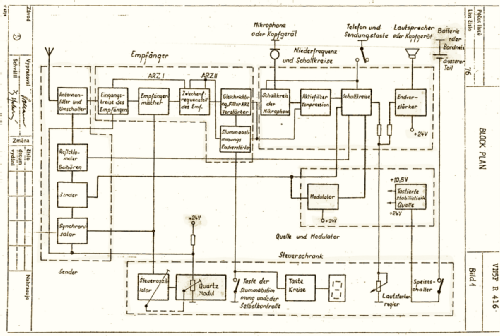

Select picture or schematic to display from thumbnails on the right and click for download.
For model Flugfunkgerät LS-5, Tesla; Praha, Bratislava etc.

Country:  Czechoslovakia
Manufacturer / Brand:  Tesla; Praha, Bratislava etc.
Brand

Supraphon
Year: 1984 ?? Category: Commercial Transmitter & Receiver (TRX not Amateur)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Flugfunkgerät LS-5 - Tesla; Praha, Bratislava etc.
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 84 x 84 x 240 mm / 3.3 x 3.3 x 9.4 inch
Notes

Sprechfunkgerät für den Flugfunkbereich 118 - 136 MHz, vorgesehen für den Einbau in Segelflugzeuge. 10 Kanäle (auswechselbare Quarzblöcke), Amplitudenmodulation.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

Model page created by Siegfried Droese. See "Data change" for further contributors.
