• Country
• Czechoslovakia

• Manufacturer / Brand
• Tesla; Praha, Bratislava etc.

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109795

• • Brand: Supraphon

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Kompas ANP283 - Tesla; Praha, Bratislava etc.

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 570 x 160 x 182 mm / 22.4 x 6.3 x 7.2 inch

• Notes

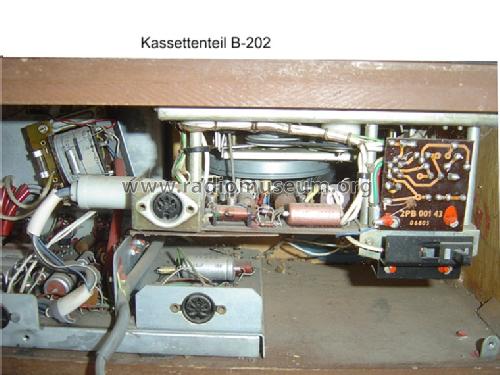

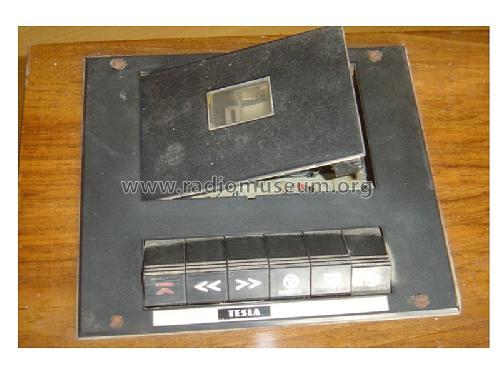

• FM: OIRT. Kassettenteil Tesla B202.

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Mentioned in
• Ceskoslovenske Rozhlasove a Televizni Prijimace a Nizkofrekvencni Zesilovace

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.
